AMC DMPA 120 Light Media player amplifier
- Output power – 120 W @ 2 Ω, 120 W @ 100 V
- Inputs – 1 x Balanced Phoenix, 1 x Stereo RCA, 1 x 3.5 mm TRS jack
- Outputs – Low impedance output – 2 Ω; high impedance output – 100 V; 1 x Stereo RCA line out
- THD – < 0.4 %
- Equalization – Bass: 140 Hz ±10 dB; Treble: 16 kHz ±10 dB
Last modified: October 15th, 2026
by
by

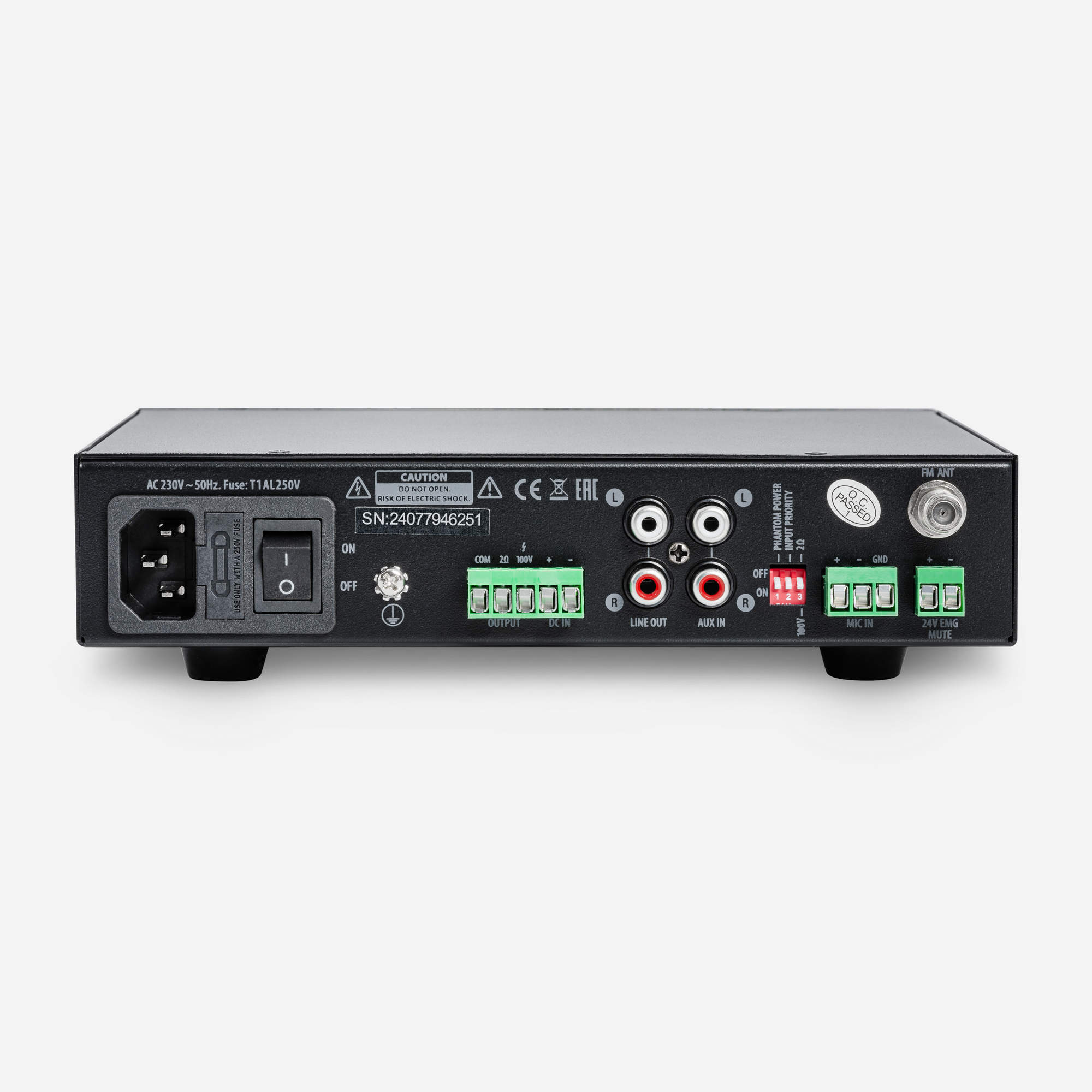

Compact Class-D mixing amplifier with a priority microphone input (phantom power), built-in USB media player, AUX input, FM radio and wireless streaming from mobile devices. Emergency mute and bass/treble controls, a 100 V output plus a 2 Ω (four 8 Ω or eight 16 Ω speakers in parallel) low-impedance output. 1U half-rack size with optional brackets for 19″ rack mounting. Suited to shops, restaurants, petrol stations and similar spaces.
