Cloud Electronics CS-S12TW & CS-S12TB
- 12″ treated paper woofer with 1″ compression driver in a 2-way coaxial design
- Frequency response: 55Hz – 20kHz (-3dB)
- Coverage: 90° average (2–10kHz)
- Sensitivity: 96dB (1W/1m), Max SPL: 122dB
- Built-in 70/100V transformer – 100V taps: 150W, 75W, 37.5W; 70V taps: 75W, 37.5W, 18.75W

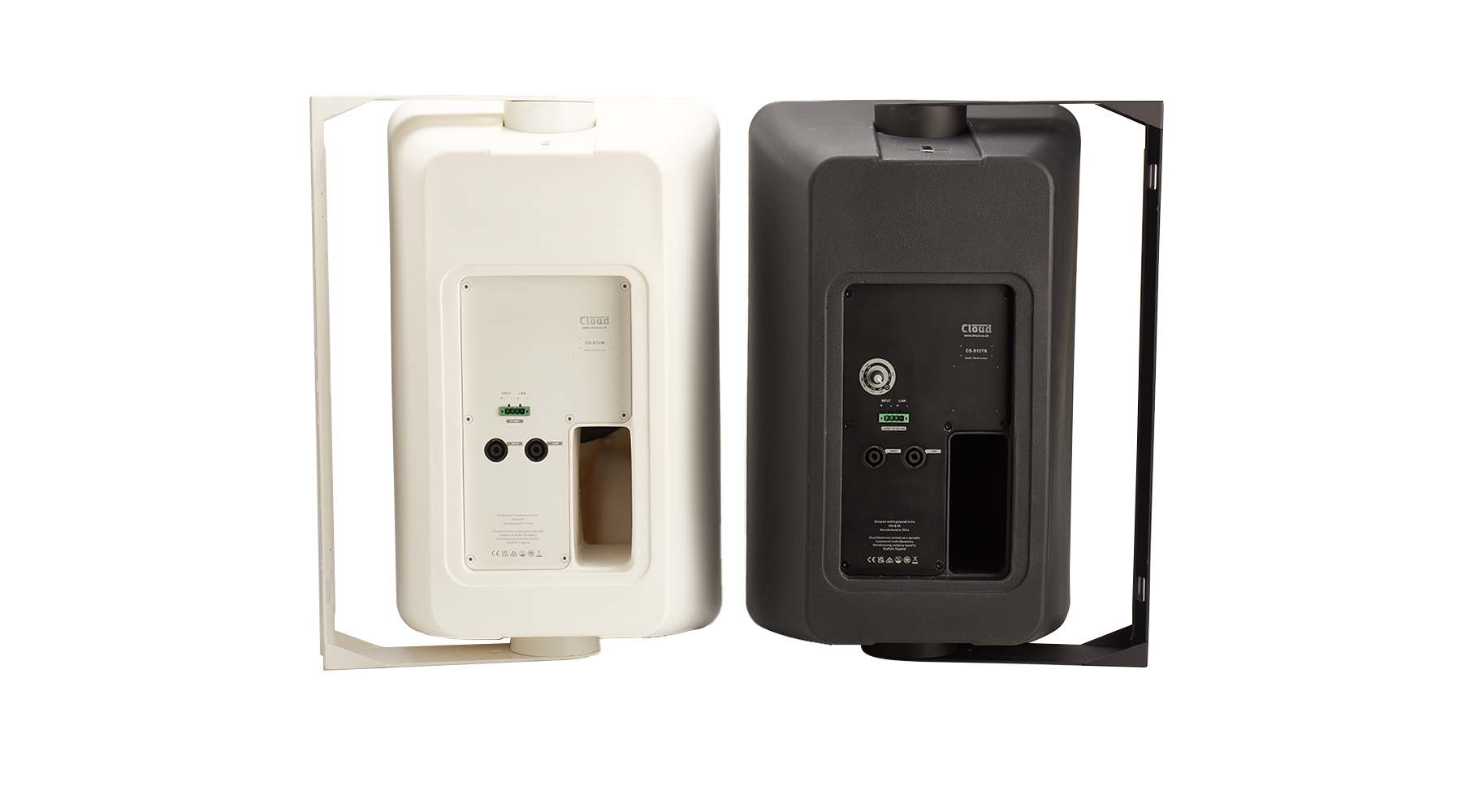

- Rear rotary tap switch with 8Ω bypass and OFF positions
- Speakon and 4-pin Euroblock inputs with link-through for daisy-chaining
- Optional IP66 rear cover plate (CS-IP66) for exposed outdoor locations
- Rugged, recyclable LLDPE enclosure with steel grille, for indoor or outdoor use
- Mount vertically or horizontally: integrated pole mount, M6 points, safety tie-off point
- Optional U-bracket: CS-12BKTB/W
- Available in Black (RAL 9011) or White (RAL 9003)
- Dims: 599 x 369 x 330mm (h x w x d)
- Weight: 16.99kg net
Last modified: October 13th, 2026
by
by
The CS-S12T is the 70/100V line version of Cloud’s new 12-inch CS-S Series loudspeaker, so you get front-of-house sound quality on a standard 100V distributed system. Every size in the CS-S range shares the same acoustic signature, so 8″, 10″ and 12″ models can be mixed in one venue to match each area’s SPL needs while sounding consistent throughout. The coaxial drivers deliver a wide, even coverage pattern with strong low-frequency output for both background and foreground music.
