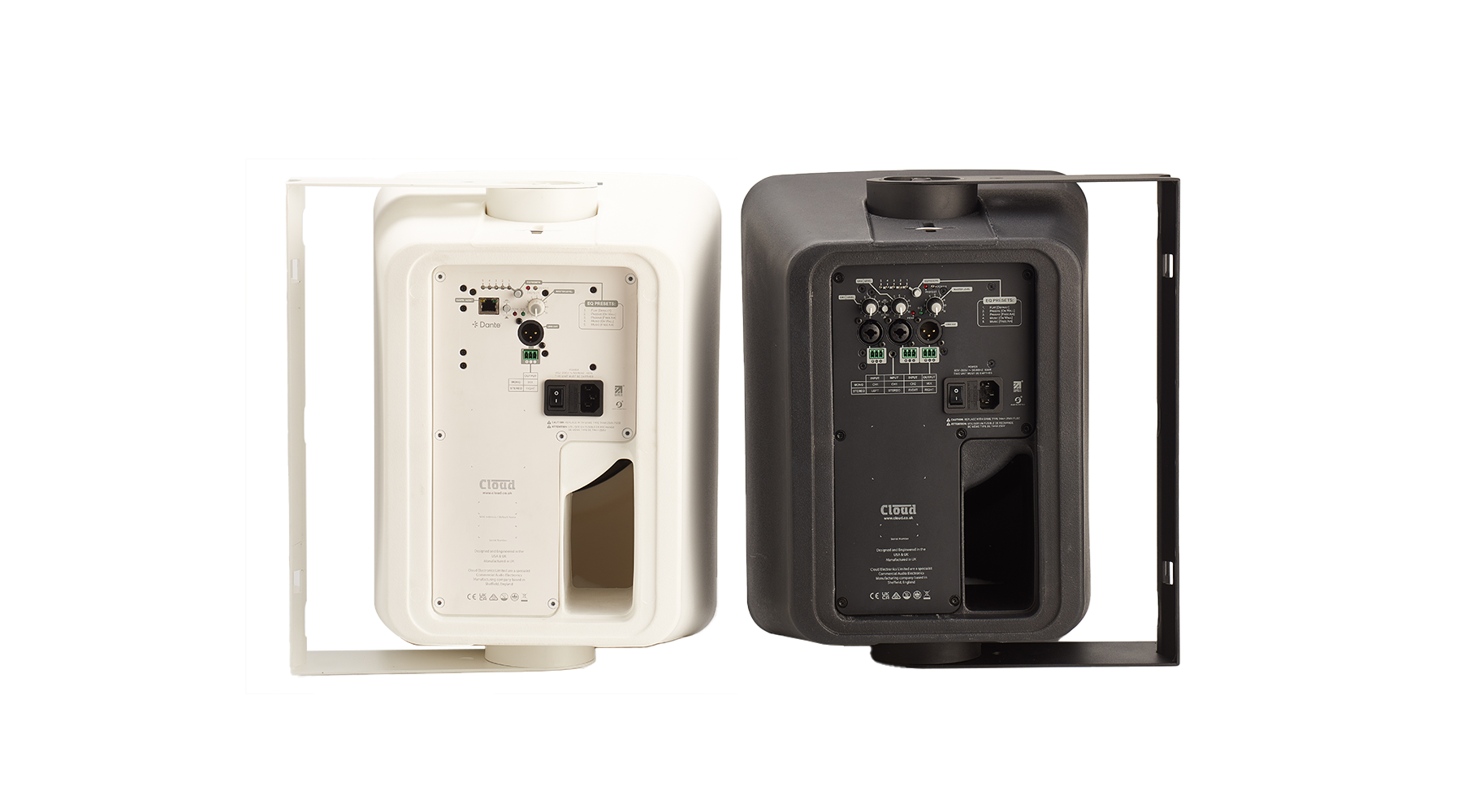

Cloud Electronics CS-S10AW & CS-S10AB
- 10″ treated paper woofer with 1″ compression driver in a 2-way coaxial design
- Frequency response: 65Hz – 20kHz (-3dB)
- Coverage: 95° average (2–10kHz)
- Sensitivity: 93dB (1W/1m), Max SPL: 117dB
- Built-in 2-channel Class D amplifier with DSP bi-amped crossover
- Inputs: 2 x Neutrik Combo (XLR/TRS), 2 x 3-pin Euroblock and 3.5mm stereo jack – mic or line, with 45dB of gain
- 5 EQ presets, per-input and master level controls, mono/stereo switch
- Link output on XLR and Euroblock for extra speakers
- Full protection: over-temperature, DC, HF and over-current; IEC mains
- Rugged, recyclable LLDPE enclosure with steel grille, for indoor or outdoor use
- Mount vertically or horizontally: integrated pole mount, M6 points, safety tie-off point
- Optional U-bracket: CS-810BKTB/W
- Available in Black (RAL 9011) or White (RAL 9003)
- Dims: 429 x 318 x 280mm (h x w x d)
- Weight: 10.94kg net
Last modified: October 13th, 2026
by
by
The CS-S10A is the self-powered version of Cloud’s new 10-inch CS-S Series loudspeaker. Its built-in Class D amplifier and DSP mean you only need a mains supply and a source – ideal for stand-alone rooms, studios and events. Every size in the CS-S range shares the same acoustic signature, so 8″, 10″ and 12″ models can be mixed in one venue to match each area’s SPL needs while sounding consistent throughout. The coaxial drivers deliver a wide, even coverage pattern with strong low-frequency output for both background and foreground music.
